三维霍尔探头
砷化镓霍尔器件三维探头主要适用于空间磁场，表磁测量或交变脉冲磁场测量；多种标配尺寸，可定制长度，宽度与厚度 ；也可定制在特殊领域下的磁场测量探头，如高温，低温等。

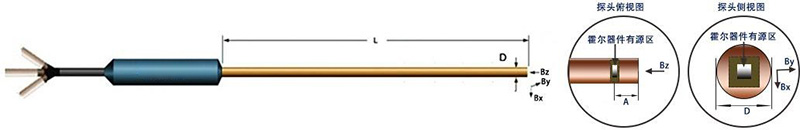

三维霍尔探头：
长度可按要求自定
可在探头内加装温度传感器
可组合阵列探头
交货期为 1-4 周
|
型号 Model |
L(cm) approx |
D
(mm) max
|
有源区直径 Active area(mm) | 频率范围Frequency range |
满量程
Full Scale
(Standard)
|
精度 （线性度）Magnetic linearity(%rdg) |
工作温区Operating temp range |
温度系数 Temp coefficient (max) |
封装材料Encapsulation material |
| 3ADX801F | 10/25/50 | 5 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -10℃ ~ +75℃ | ±0.03%/℃ |
圆形黄铜
Circular brass
|
| 3ADX802F | 10/25/50 | 3 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -10℃ ~ +75℃ | ±0.03%/℃ |
圆形黄铜
Circular brass
|
| 3ADX803F | 10/25/50 | 2 | 0.1 | DC-100kHz | 300kG | ±0.50% ~ 30kG | -10℃ ~ +75℃ | ±0.03%/℃ |
圆形黄铜
Circular brass
|
| 3ADX804F | 10/25/50 | 1.5 | 0.1 | DC-100kHz | 300kG | ±0.50% ~ 30kG | -10℃ ~ +75℃ | ±0.03%/℃ |
圆形黄铜
Circular brass
|
| 3ADX805F | 10/25/50 | 1.2 | 0.1 | DC-100kHz | 300kG | ±0.50% ~ 30kG | -10℃ ~ +75℃ | ±0.03%/℃ |
圆形黄铜
Circular brass
|
| 3ADX806F 方形 | 10/25/50 | 4 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -10℃ ~ +75℃ | ±0.03%/℃ |
方形黄铜
Square brass
|
| 3ADX807F 方形 | 10/25/50 | 2.5 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -10℃ ~ +75℃ | ±0.03%/℃ |
方形黄铜
Square brass
|
温度补偿型三维探头：
长度可按要求自定
可在探头内加装温度传感器
可组合阵列探头
交货期为 1-2 周
|
型号 Model |
L(cm) approx |
D
(mm) max
|
有源区直径 Active area(mm) | 频率范围Frequency range |
满量程
Full Scale
(Standard)
|
精度 （线性度）Magnetic linearity(%rdg) |
工作温区Operating temp range |
温度系数Temp coefficient (max) |
封装材料Encapsulation material |
| 3ADX801FT | 10/25/50 | 5 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -10℃ ~ +75℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX802FT | 10/25/50 | 3 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -10℃ ~ +75℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX803FT | 10/25/50 | 2 | 0.1 | DC-100kHz | 300kG | ±0.50% ~ 30kG | -10℃ ~ +75℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX804FT | 10/25/50 | 1.5 | 0.1 | DC-100kHz | 300kG | ±0.50% ~ 30kG | -10℃ ~ +75℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX805FT | 10/25/50 | 1.2 | 0.1 | DC-100kHz | 300kG | ±0.50% ~ 30kG | -10℃ ~ +75℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX806FT 方形 |
10/20 | 4 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -10℃ ~ +75℃ | ±0.015%/℃ |
方形黄铜
Square brass
|
| 3ADX807FT 方形 |
10/20 | 2.5 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -10℃ ~ +75℃ | ±0.015%/℃ |
方形黄铜
Square brass
|
耐高温温度补偿型三维探头：
长度可按要求自定
可在探头内加装温度传感器
可组合阵列探头
交货期为 1-2 周
|
型号 Model |
L(cm) approx |
D(mm) max | 有源区直径 Active area(mm) | 频率范围Frequency range |
满量程
Full Scale
(Standard)
|
精度 （线性度）Magnetic linearity(%rdg) |
工作温区Operating temp range |
温度系数Temp coefficient(max) |
封装材料Encapsulation material |
| 3ADX801HT | 10/25/50 | 5 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -20℃ ~ +200℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX802HT | 10/25/50 | 3 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -20℃ ~ +200℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX803HT | 10/25/50 | 2 | 0.1 | DC-100kHz | 300kG | ±0.50% ~ 30kG | -20℃ ~ +200℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX804HT | 10/25/50 | 1.5 | 0.1 | DC-100kHz | 300kG | ±0.50% ~ 30kG | -20℃ ~ +200℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX805HT | 10/25/50 | 1.2 | 0.1 | DC-100kHz | 300kG | ±0.50% ~ 30kG | -20 ℃ ~ +200℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX806HT 方形 |
10/20 | 4 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -20℃ ~ +200℃ | ±0.015%/℃ |
方形黄铜
Square brass
|
| 3ADX807HT 方形 |
10/20 | 2.5 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -20℃ ~ +200℃ | ±0.015%/℃ |
方形黄铜
Square brass
|
耐低温温度补偿型三维探头：
长度可按要求自定
可在探头内加装温度传感器
可组合阵列探头
交货期为 1-2 周
|
型号 Model |
L(cm) approx |
D(mm) max | 有源区直径 Active area(mm) | 频率范围Frequency range |
满量程
Full Scale
(Standard)
|
精度 （线性度）Magnetic linearity(%rdg) |
工作温区Operating temp range |
温度系数Temp coefficient(max) |
封装材料Encapsulation material |
| 3ADX801LT | 10/25/50 | 5 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -269℃ ~ +75℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX802LT | 10/25/50 | 3 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -269℃ ~ +75℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX803LT | 10/25/50 | 2 | 0.1 | DC-100kHz | 300kG | ±0.50% ~ 30kG | -269℃ ~ +75℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX804LT | 10/25/50 | 1.5 | 0.1 | DC-100kHz | 300kG | ±0.50% ~ 30kG | -269℃ ~ +75℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX805LT | 10/25/50 | 1.2 | 0.1 | DC-100kHz | 300kG | ±0.50% ~ 30kG | -269℃ ~ +75℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
耐高低温温度补偿型三维探头：
长度可按要求自定
可在探头内加装温度传感器
可组合阵列探头
交货期为 1-2 周
|
型号 Model |
L(cm) approx |
D(mm) max | 有源区直径 Active area(mm) | 频率范围Frequency range |
满量程
Full Scale
(Standard)
|
精度 （线性度）Magnetic linearity(%rdg) |
工作温区Operating temp range |
温度系数Temp coefficient(max) |
封装材料Encapsulation material |
| 3ADX801HLT | 10/25/50 | 5 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -269℃ ~ +120℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX802HLT | 10/25/50 | 3 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -269℃ ~ +120℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX803HLT | 10/25/50 | 2 | 0.1 | DC-100kHz | 300kG | ±0.50% ~ 30kG | -269℃ ~ +120℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX804HLT | 10/25/50 | 1.5 | 0.1 | DC-100kHz | 300kG | ±0.50% ~ 30kG | -269℃ ~ +120℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX805HLT | 10/25/50 | 1.2 | 0.1 | DC-100kHz | 300kG | ±0.50% ~ 30kG | -269℃ ~ +150℃ | ±0.015%/℃ |
圆形黄铜
Circular brass
|
| 3ADX806HLT 方形 |
10/20 | 4 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -269℃ ~ +120℃ | ±0.015%/℃ |
方形黄铜
Square brass
|
| 3ADX807HLT 方形 |
10/20 | 2.5 | 0.15 | DC-100kHz | 300kG | ±0.10% ~ 30kG | -269℃ ~ +120℃ | ±0.015%/℃ |
方形黄铜
Square brass
|
OEM三维探头：
长度可按要求自定
可在探头内加装温度传感器
可组合阵列探头
交货期为 1-2 周
|
型号 Model |
L(cm) approx |
D
(mm) max
|
有源区直径
Active area(mm)
|
频率范围Frequency range | 磁灵敏度Magnetic sensitivity | 精度 （线性度）Magnetic linearity(%rdg) |
工作温区Operating temp range |
不平衡电压Unbalance voltage
（mv)
|
温度系数Temp coefficient (max) |
封装材料Encapsulation material |
| 3ADX801A | 10/25/50 | 3.5 | 0.15 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.2% to 30kG | -20°C to +75°C | ≤±0.10 | -0.03%/°C |
黄 铜
Brass
|
| 3ADX801B | 10/25/50 | 3.5 | 0.15 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.3% to 30kG | -20°C to +75°C | ≤±0.20 | -0.03%/°C |
黄 铜
Brass
|
| 3ADX802A | 10/25/50 | 2 | 0.15 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.2 % to 30kG | -20°C to +75°C | ≤±0.10 | -0.03%/°C |
黄 铜
Brass
|
| 3ADX802B | 10/25/50 | 2 | 0.15 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.3% to 30kG | -20°C to +75°C | ≤±0.20 | -0.03%/°C |
黄 铜
Brass
|
| 3ADX803A | 10/25/50 | 1.5 | 0.15 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.2% to 30kG | -20°C to +75°C | ≤±0.10 | -0.03%/°C |
黄 铜
Brass
|
| 3ADX803B | 10/25/50 | 1.5 | 0.15 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.3% to 30kG | -20°C to +75°C | ≤±0.20 | -0.03%/°C |
黄 铜
Brass
|
| 3ADX804A | 10/25/50 | 1.2 | 0.1 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.2% to ±10kG <±2% to ±20kG |
-20°C to +75°C | ≤±0.10 | -0.03%/°C |
黄 铜
Brass
|
| 3ADX804B | 10/25/50 | 1.2 | 0.1 | DC-100KHZ | 2.5mV/KG to 15mV/KG |
<±0.3% to ±10kG <±3% to ±20kG
|
-20°C to +75°C | ≤±0.20 | -0.03%/°C |
黄 铜
Brass
|
……
