二维霍尔探头
探头长度可定制
可以探头内加装温度传感器
可组合陈列探头
交货期为1-2周
可以探头内加装温度传感器
可组合陈列探头
交货期为1-2周

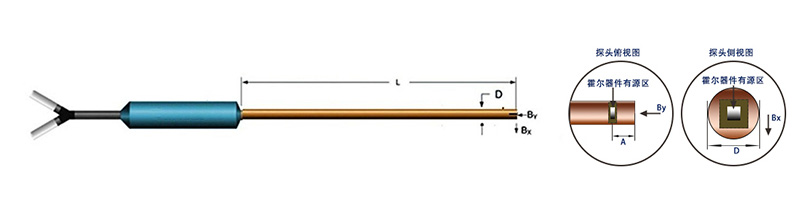

二维霍尔探头：
探头长度可定制; 可定制阵列探头
探头内可以加装温度传感器
可组合陈列探头
|
型号 Model |
L(cm) approx |
D(mm) max | A (mm) |
有源区直径 Active area(mm) | 频率范围Frequency range |
满量程
Full Scale
(Standard)
|
精度 （线性度）Magnetic linearity(%rdg) |
工作温区Operating temp range |
温度系数Temp coefficient(max) |
封装材料Encapsulation material |
| 2ADX801F | 10/25/50 | 4 | 1±0.1 | 0.15 | DC-100kHz | 300kG | ±0.1% ~ 30kG | -10℃ ~ +75℃ | ±0.03%/℃ |
圆形黄铜
Circular brass
|
| 2ADX802F | 10/25/50 | 3 | 1±0.1 | 0.15 | DC-100kHz | 300kG | ±0.1% ~ 30kG | -10℃ ~ +75℃ | ±0.03%/℃ |
圆形黄铜
Circular brass
|
| 2ADX803F | 10/25/50 | 2 | 1±0.1 | 0.15 | DC-100kHz | 300kG | ±0.1% ~ 30kG | -10℃ ~ +75℃ | ±0.03%/℃ |
圆形黄铜
Circular brass
|
| 2ADX804F | 10/25/50 | 1.5 | 1±0.1 | 0.1 | DC-100kHz | 300kG | ±0.1% ~ 30kG | -10℃ ~ +75℃ | ±0.03%/℃ |
圆形黄铜
Circular brass
|
| 2ADX805F | 10/25/50 | 1.2 | 1±0.1 | 0.1 | DC-100kHz | 300kG | ±0.15% ~ 30kG | -10℃ ~ +75℃ | ±0.03%/℃ |
圆形黄铜
Circular brass
|
| 2ADX806F | 10/25/50 | 0.9 | 1±0.1 | 0.1 | DC-100kHz | 300kG | ±0.15% ~ 30kG | -10℃ ~ +75℃ | ±0.03%/℃ |
圆形黄铜
Circular brass
|
| 2ADX806F 方形 |
10/25/50 | 4 | 1±0.1 | 0.15 | DC-100kHz | 300kG | ±0.15% ~ 30kG | -10℃ ~ +75℃ | ±0.03%/℃ |
方形黄铜
Square brass
|
| 2ADX807F 方形 |
10/25/50 | 2.5 | 1±0.1 | 0.15 | DC-100kHz | 300kG | ±0.15% ~ 30kG | -10℃ ~ +75℃ | ±0.03%/℃ |
方形黄铜
Square brass
|
红色为二维高斯计标配
耐高低温温度补偿型二维霍尔探头：
探头长度可定制; 可定制阵列探头
探头内可以加装温度传感器
可组合陈列探头
|
型号 Model |
L(cm) approx |
D(mm) max | A (mm) |
有源区
直径 Active area(mm)
|
频率范围Frequency range |
满量程
Full Scale
(Standard)
|
精度 （线性度）Magnetic linearity(%rdg) |
工作温区Operating temp range |
温度系数Temp coefficient(max) |
封装材料Encapsulation material |
| 2ADX801FT | 10/25/50 | 5 | 1±0.1 | 0.15 | DC-100kHz | 30kG | ±0.15% ~ 30kG | -200℃ ~ +200℃ | ±0.02%/℃ |
圆形黄铜
Circular brass
|
| 2ADX802FT | 10/25/50 | 3 | 1±0.1 | 0.15 | DC-100kHz | 30kG | ±0.15% ~ 30kG | -200℃ ~ +200℃ | ±0.02%/℃ |
圆形黄铜
Circular brass
|
| 2ADX803FT | 10/25/50 | 2 | 1±0.1 | 0.1 | DC-100kHz | 30kG | ±0.15% ~ 30kG | -200℃ ~ +200℃ | ±0.02%/℃ |
圆形黄铜
Circular brass
|
| 2ADX804FT | 10/25/50 | 1.5 | 1±0.1 | 0.1 | DC-100kHz | 30kG | ±0.5% ~ 30kG | -200℃ ~ +200℃ | ±0.02%/℃ |
圆形黄铜
Circular brass
|
| 2ADX805FT | 10/25/50 | 1.2 | 1±0.1 | 0.1 | DC-100kHz | 300kG | ±0.5% ~ 30kG | -200℃ ~ +200℃ | ±0.03%/℃ |
圆形黄铜
Circular brass
|
| 2ADX806FT 方形 |
10/25/50 | 4 | 1±0.1 | 0.15 | DC-100kHz | 300kG | ±0.15% ~ 30kG | -200℃ ~ +200℃ | ±0.03%/℃ |
方形黄铜
Square brass
|
| 2ADX807FT 方形 |
10/25/50 | 2.5 | 1±0.1 | 0.15 | DC-100kHz | 300kG | ±0.15% ~ 30kG | -200℃ ~ +200℃ | ±0.03%/℃ |
方形黄铜
Square brass
|

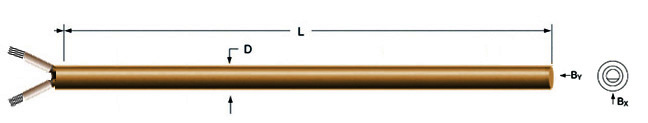

OEM二维霍尔探头：
长度可按要求自定，如需手柄有金属，塑料两种可选
可在探头内加装温度传感器或镀金
交货期为1-4周（无库存情况下）不含增值税及运费
交货期为1-4周（无库存情况下）不含增值税及运费
|
型号 Model |
L(cm) approx |
D
(mm) max
|
有源区直径 Active area(mm)
|
频率范围Frequency range | 磁灵敏度Magnetic sensitivity |
精度（线性度）Magneticlinearity
(%rdg)
|
工作温区Operating temp range |
不平衡电压 Unbalance voltage
（mv)
|
温度系数 Temp coefficient (max) |
封装材料Encapsulation material |
| 2ADX801A | 10/25/50 | 3.5 | 0.15 | DC-100KHZ |
2.5 to 15
mV/KG
|
<±0.2% to 30kG
|
-20°C to +70°C | ≤±0.10 | -0.03%/°C |
黄 铜
Brass
|
| 2ADX801B | 10/25/50 | 3.5 | 0.15 | DC-100KHZ |
2.5 to 15
mV/KG
|
<±0.3% to 30kG
|
-20°C to +70°C | ≤±0.20 | -0.03%/°C |
黄 铜
Brass
|
| 2ADX802A | 10/25/50 | 2 | 0.15 | DC-100KHZ |
2.5 to 15
mV/KG
|
<±0.2% to 30kG
|
-20°C to +70°C | ≤±0.10 | -0.03%/°C |
黄 铜
Brass
|
| 2ADX802B | 10/25/50 | 2 | 0.15 | DC-100KHZ |
2.5 to 15
mV/KG
|
<±0.3% to 30kG
|
-20°C to +70°C | ≤±0.20 | -0.03%/°C |
黄 铜
Brass
|
| 2ADX803A | 10/25/50 | 1.5 | 0.15 | DC-100KHZ |
2.5 to 15
mV/KG
|
<±0.2% to 30kG
|
-20°C to +70°C | ≤±0.10 | -0.03%/°C |
黄 铜
Brass
|
| 2ADX803B | 10/25/50 | 1.5 | 0.15 | DC-100KHZ |
2.5 to 15
mV/KG
|
<±0.3% to 30kG
|
-20°C to +70°C | ≤±0.20 | -0.03%/°C |
黄 铜
Brass
|
| 2ADX804A | 10/25/50 | 1.2 | 0.1 | DC-100KHZ |
2.5 to 15
mV/KG
|
<±0.2% to (±10kG)
<±2% to (±30kG)
|
-20°C to +70°C | -0.03%/°C |
黄 铜
Brass
|
|
| ≤±0.10 | ||||||||||
| 2ADX804B | 10/25/50 | 1.2 | 0.1 | DC-100KHZ |
2.5to 15
mV/KG
|
<±0.2% to (±10kG)
<±3% to (±30kG)
|
-20°C to +70°C | ≤±0.20 | -0.03%/°C |
黄 铜
Brass
|
| 2ADX805A | 10/25/50 | 0.9 | 0.1 | DC-100KHZ |
2.5 to 15
mV/KG
|
<±0.2% to (±10kG)
<±2% to (±30kG)
|
-20°C to +70°C | -0.03%/°C |
黄 铜
Brass
|
|
| ≤±0.10 | ||||||||||
| 2ADX805B | 10/25/50 | 0.9 | 0.1 | DC-100KHZ |
2.5 to 15
mV/KG
|
<±0.3% to (±10kG)
<±3% to (±30kG)
|
-20°C to +70°C | ≤±0.20 | -0.03%/°C |
黄 铜
Brass
|
……
