DX-150高斯计

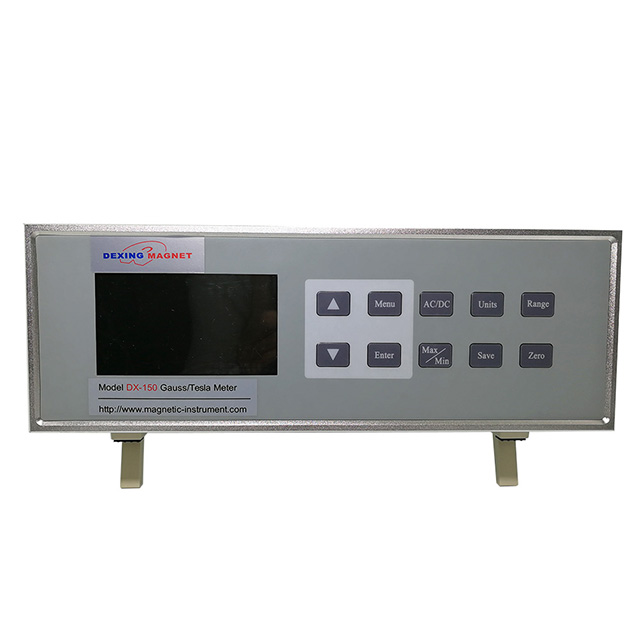

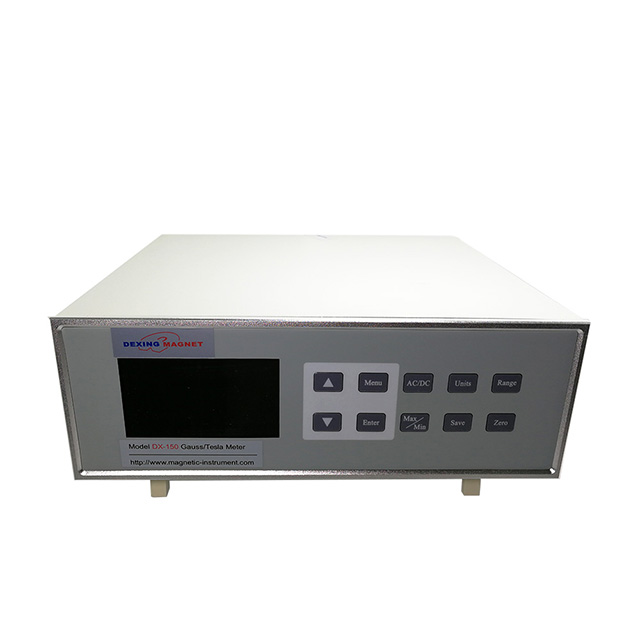

DX-150型全数字高斯计/特斯拉计适合要求一般高精度,高分辨率的磁场测试应用. 是我们设计制造的高精度智能化仪器,是针对传统指针式、数字表头式高斯/特斯拉计的智能化解决方案。充分运用微处理器技术,为您提供研究和生产所需的高刷新率,简捷的面板及全菜单操作,6位分辨率读数,高分辨率1/60000,使您在高磁场测量时能观查到0.1Gs的微弱变化,最大量程30KG(3T),其大容量数据存储及数据阅读可按存储时间查询。适合全方位交直流磁场测量,数字接口输出(实时),提供广泛的指令集,可加装工控接口,提供高速采集型(50-300次/秒)专业绘图软件用于磁场。
适用范围:
永磁材料表面磁场,交直流电机,扬声器,磁选机,永磁充磁机的工作磁场。磁路内的间隙磁场和细缝磁场,且可应用于检测机械加工之后物品残留磁场。检测磁场分布,产品退磁后剩余磁场,控制电镀物品带磁情况,检测马达磁性,检测电磁场的漏磁等各类磁场的磁感应强度。且可检测环境磁场和电器产品产生的电磁辐射磁场。可选装各类工控接口,实现自动化控制。
产品特性:
最大值/最小值/峰值/谷值 |
自动零点,自动/手动量程 |
探头校正 ,记忆操作模式 |
可选高低温或订制探头几十种 |
RS-232C接口/数据通讯 |
阈值设定(上,下限)及报警 |
数据存储(自动/手动) /阅读 |
归零设置/相对测量模式 |
单位可选高斯,特斯拉,A/M |
技术指标:
型号:DX-150 |
||
|
0.1mT = 1GS |
|
量程 |
(0.1Gs-3000Gs)/(1Gs-30KG) |
|
分辨率 |
0.1Gs(0.01mT)五位液晶显示 |
|
精度(显示值) |
直流 |
读数的±0.3%±0.05%的范围 |
交流 |
±2.0%的读数±0.5%的范围 |
|
频率范围 |
直流模式 |
直流 |
交流模式 |
2kHz~50kHz |
|
附加影响 |
温度系数 |
±(0.03%±1 count)/ºC |
温度范围 |
工作温度 |
0ºC至50ºC |
储存温度 |
-10ºC至60ºC |
|
面板显示 |
128 * 64像素,宽屏液晶 |
|
通信接口 |
RS-232/USB 标准9针“D”型连接器 |
|
供电 |
电压:200 / 240v 频率:50-60 Hz |
界面显示:
|
|
|

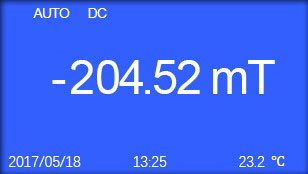

DC直流档 |
|

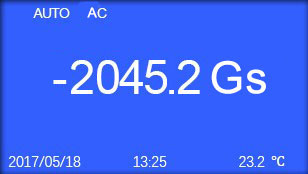

AC交流档 |
用于测量静态磁场,显示当前读数 |
|
用于测量交变磁场,显示所测磁场波形的有效值 |
可配选件:
标配:安装在计算机中与高斯计进行通信的软件,可用于测试数据的保存、导出和绘图等功能 |
探头支架
用于固定探头,提高测量稳定性,消除手持带来的抖动 |
(需另购) 用来提醒磁场超设定值上线,超设定值下线和正常状态下的磁场。 |
USB转RS-232 连接线
用于没有RS-232接口的计算机与高斯计的链接 |

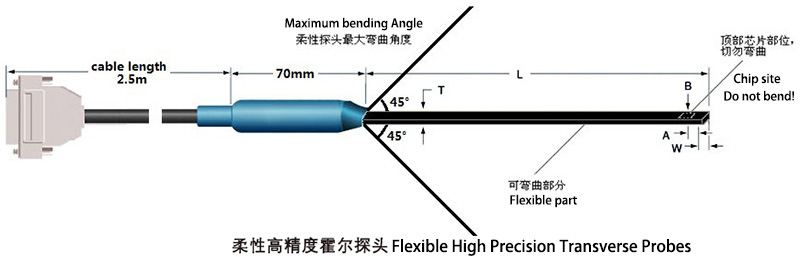

探头选择:
Model | L(cm) approx |
T(mm) max |
W (mm) |
A (mm) |
Active area (mm) |
Frequency range |
Full Scale (Standard) |
Magnetic linearity (%rdg) |
Operating temp range |
Zero Temp coefficient (max) |
Temp coefficient (max) |
Stem material |
CDX800F | 6/8/10 | 1 | 2.6 | 1±0.1 | 0.15 | DC-50kHZ | 30kG |
±0.5% to 20kG |
-10°C to
+75°C
|
±0.11 G/ºC | ±0.015%/C° | Brass |
CDX801F | 6/8/10 | 0.8 | 2.2 | 1±0.1 | 0.15 | DC-50kHZ | 30kG | ±0.5% to 20kG |
-10°C to
+75°C
|
±0.11 G/ºC | ±0.015%/C° | Brass |
CDX802F | 6/8/10 | 0.6 | 1.7 | 1±0.1 | 0.15 | DC-50kHZ | 30kG | ±0.5% to 20kG |
-10°C to
+75°C
|
±0.11 G/ºC | ±0.015%/C° | Brass |
MDX801F | 6/8/10 | 0.5 | 1.6 | 1±0.1 | 0.15 | DC-50kHZ | 30kG | ±0.5% to 20kG |
-10°C to
+75°C
|
±0.11 G/ºC | ±0.015%/C° | Brass |
MDX802F | 6/8/10 | 0.5 | 1.2 | 1±0.1 | 0.15 | DC-50kHZ | 30kG | ±0.5% to 20kG |
-10°C to
+75°C
|
±0.11 G/ºC | ±0.015%/C° | Brass |
MDX803F Flexible |
6/8/10 | 0.35 | 1.2/0.8 |
0.2±0.05 |
0.15 | DC-50kHZ | 30kG | ±0.5% to 20kG |
-10°C to
+75°C
|
±0.11 G/ºC | ±0.015%/C° | Resin |
MDX804F Flexible |
6/8/10 | 0.25 | 1.2/0.8 |
0.2±0.05 |
0.1 | DC-50kHZ | 30kG | ±0.5% to 20kG |
-10°C to
+75°C
|
±0.11 G/ºC | ±0.015%/C° | Resin |
Model | L(cm) approx |
D(mm) max |
A(mm) | Active area (mm) |
Frequency range |
Full Scale (Standard) |
Magnetic linearity (%rdg) |
operating temp range |
Zero Temp coefficient (max) |
Temp coefficient (max) |
Stem material |
1ADX800F | 10/25/50 | 5 | 1±0.1 | 0.15 | DC-30KHZ | 30kG |
±0.2% to
30kG
|
-10°C to
+100°C
|
±0.08 G/ºC | ±0.03%/C° | Brass |
1ADX801F | 10/25/50 | 3 | 1±0.1 | 0.15 | DC-30KHZ | 30kG |
±0.2% to
30kG
|
-10°C to
+100°C
|
±0.08 G/ºC | ±0.03%/C° | Brass |
1ADX802F | 10/25/50 | 2 | 1±0.1 | 0.15 | DC-30KHZ | 30kG |
±0.2% to
30kG
|
-10°C to
+100°C
|
±0.08 G/ºC | ±0.03%/C° | Brass |
1ADX803F | 10/25/50 | 1.5 | 1±0.1 | 0.15 | DC-30KHZ | 30kG |
±0.2% to
30kG
|
-10°C to
+100°C
|
±0.08 G/ºC | ±0.03%/C° | Brass |
1ADX804F | 10/25/50 | 1.2 | 0.5±0.1 | 0.15 | DC-30KHZ | 30kG |
±0.2% to
30kG
|
-10°C to
+100°C
|
±0.08 G/ºC | ±0.03%/C° | Brass |
1ADX63805F | 10/25/50 | 0.9 | 0.5±0.1 | 0.1 | DC-30KHZ | 30kG |
±0.5% to
30kG
|
-10°C to
+100°C
|
±0.08 G/ºC | ±0.03%/C° | Brass |
可升级为高温探头(-10°C - +195°C),低温探头(-269°C - +75°C),耐高低温探头(-196°C - 195°C)以及温度补偿型(温度系数:±0.01%/°C)
Model | L(cm) approx |
T(mm) max |
W (mm) |
A (mm) |
Active area (mm) |
Frequency range |
Full Scale (Standard) |
Magnetic linearity (%rdg) |
Operating temp range |
Zero Temp coefficient (max) |
Temp coefficient (max) |
Stem material |
CDX800F-R | 6/8/10 | 1.5 | 2.4 | 1±0.1 | 0.15 | DC-50KHZ | 30kG |
±0.2% to
30kG
|
-10°C to
+70°C
|
±0.08 G/ºC | ±0.03%/C° | plastic |
CDX801F-R | 6/8/10 | 1 | 2.4 | 1±0.1 | 0.15 | DC-50KHZ | 30kG |
±0.2% to
30kG
|
-10°C to
+70°C
|
±0.08 G/ºC | ±0.03%/C° | plastic |
CDX802F-R | 6/8/10 | 0.8 | 2.3 | 1±0.1 | 0.15 | DC-50KHZ | 30kG |
±0.2% to
30kG
|
-10°C to
+70°C
|
±0.08 G/ºC | ±0.03%/C° | plastic |
……
